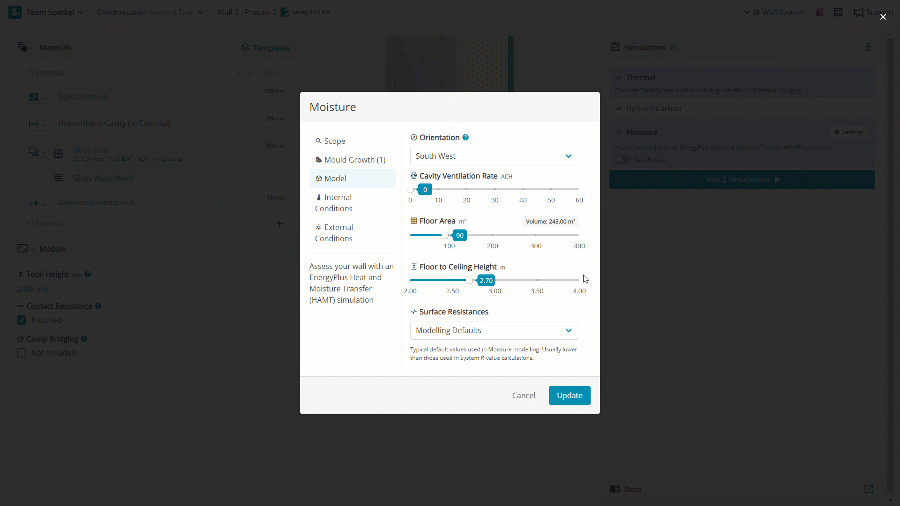

# Model

<figure><img src="https://content.gitbook.com/content/fKJnzF2TwHA3APPbiCpF/blobs/ItokNRqpy0VSFqyZflfJ/Model.gif" alt=""><figcaption></figcaption></figure>

## Orientation

Orientation refers to the geographical direction a building or a part of the building (like a wall or window) faces. Orientation can significantly impact the amount and intensity of solar radiation a building receives, which in turn affects the thermal and moisture dynamics within the building.

## Cavity Ventilation Rate

Cavity ventilation rate refers to the rate at which air moves into and out of a cavity within a building structure, such as a cavity wall or a ventilated rain screen. Ventilation can help remove moisture from a cavity, reducing the risk of condensation and related problems. In hygrothermal modelling, the cavity ventilation rate is a critical factor that can affect the moisture balance in building elements.

## Floor Area

Floor area refers to the total area of the floor of a space, measured in square meters. In hygrothermal modelling, floor area directly correlates to internal moisture loading, with larger floor areas typically having lower moisture loading than smaller areas.&#x20;

## Floor to Ceiling Height

This is the vertical distance from the floor to the ceiling of a room. It can influence the volume of air in a room and thus impact internal moisture loading.&#x20;

## Surface Resistances

<figure><img src="https://content.gitbook.com/content/fKJnzF2TwHA3APPbiCpF/blobs/NIAvzucGwPprB0IVRg2Z/Surface.gif" alt=""><figcaption></figcaption></figure>

In the context of hygrothermal modelling, surface resistances represent the resistance to heat and moisture transfer at the internal and external surfaces of a building element (like a wall or roof).

### Custom Resistances

{% hint style="info" %}
This group of inputs describe concepts applied to heat transfer surfaces that are of an advanced nature. Careful consideration must be given before using these. [More](https://bigladdersoftware.com/epx/docs/8-0/input-output-reference/page-012.html).
{% endhint %}

#### Exterior Convection Coefficient

The rate of convective heat transfer between the exterior surface of a building component and the surrounding air. It represents the effectiveness of heat exchange at the exterior boundary.

#### Cavity Convection Coefficient

The convective heat transfer coefficient within a cavity space, such as within an insulated wall or roof assembly. It characterizes the rate of heat transfer through convection within the cavity.

#### Interior Convection Coefficient

The convective heat transfer coefficient between the interior surface of a building component and the indoor air. It reflects the efficiency of heat exchange at the interior boundary.

#### Exterior Vapour Coefficient

The rate of moisture transfer between the exterior surface of a building component and the surrounding air. It indicates the effectiveness of moisture exchange at the exterior boundary.

| Paint Type                 | Thickness (m) | Sd Value (m) | Vapour Transmission Coefficient (kg/(m²⋅s⋅Pa)) |
| -------------------------- | ------------- | ------------ | ---------------------------------------------- |
| Speckel Default            | 0.0002        | 0.032        | 0.0000000065                                   |
| Water-based Emulsion Paint | 0.0002        | 0.04 - 0.1   | 0.000000005 - 0.000000002                      |
| Acrylic Paint              | 0.0002        | 0.2 - 0.4    | 0.000000001 - 0.0000000005                     |
| Latex Paint                | 0.0002        | 0.08 - 0.16  | 0.0000000025 - 0.00000000125                   |
| Silicate Paint             | 0.0002        | 0.006 - 0.02 | 0.0000000333 - 0.00000001                      |
| Oil-based Paint            | 0.0002        | 0.4 - 1.0    | 0.0000000005 - 0.0000000002                    |
| Vapour-Barrier Paint       | 0.0002        | 2.0 - 4.0    | 0.0000000001 - 0.00000000005                   |

#### Cavity Vapour Coefficient

The moisture transfer coefficient within a cavity space, such as within an insulated wall or roof assembly. It characterizes the rate of moisture transfer through the cavity.

#### Interior Vapour Coefficient

The moisture transfer coefficient between the interior surface of a building component and the indoor air. It reflects the efficiency of moisture exchange at the interior boundary.
