Using Envelope Settings
To customise envelope settings, first navigate to the zone you want to modify. This can be done for one or several zones, depending on your project needs. In the drawing space, select the zone and open the zone panel.
Please note that any envelope settings applied at the zone level will override those set at the whole building level. Use this option when you need precise control, but for most workflows, our tagging system offers a faster and more consistent way to manage envelope settings across your model.
Update Wall Envelope Settings

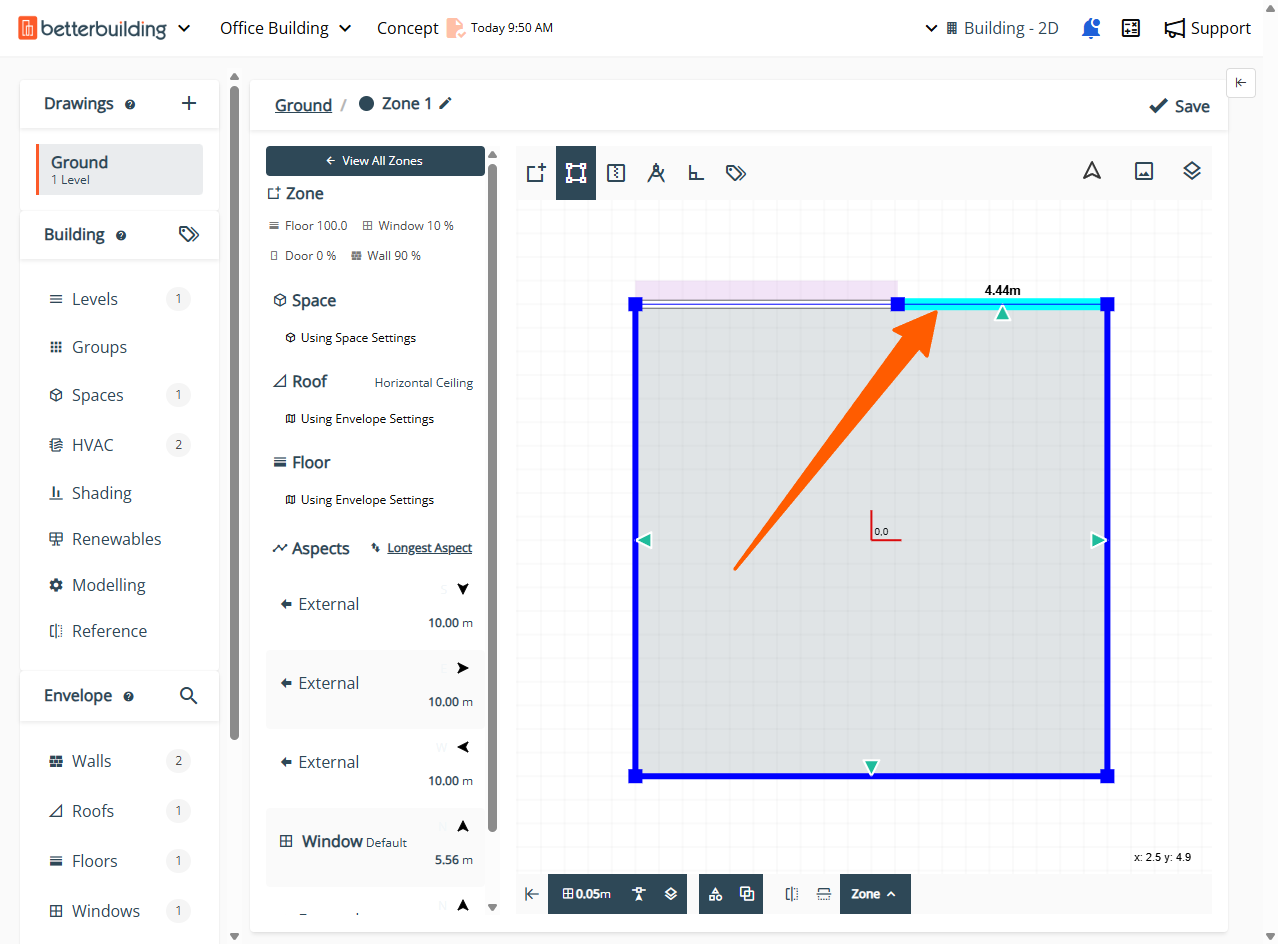

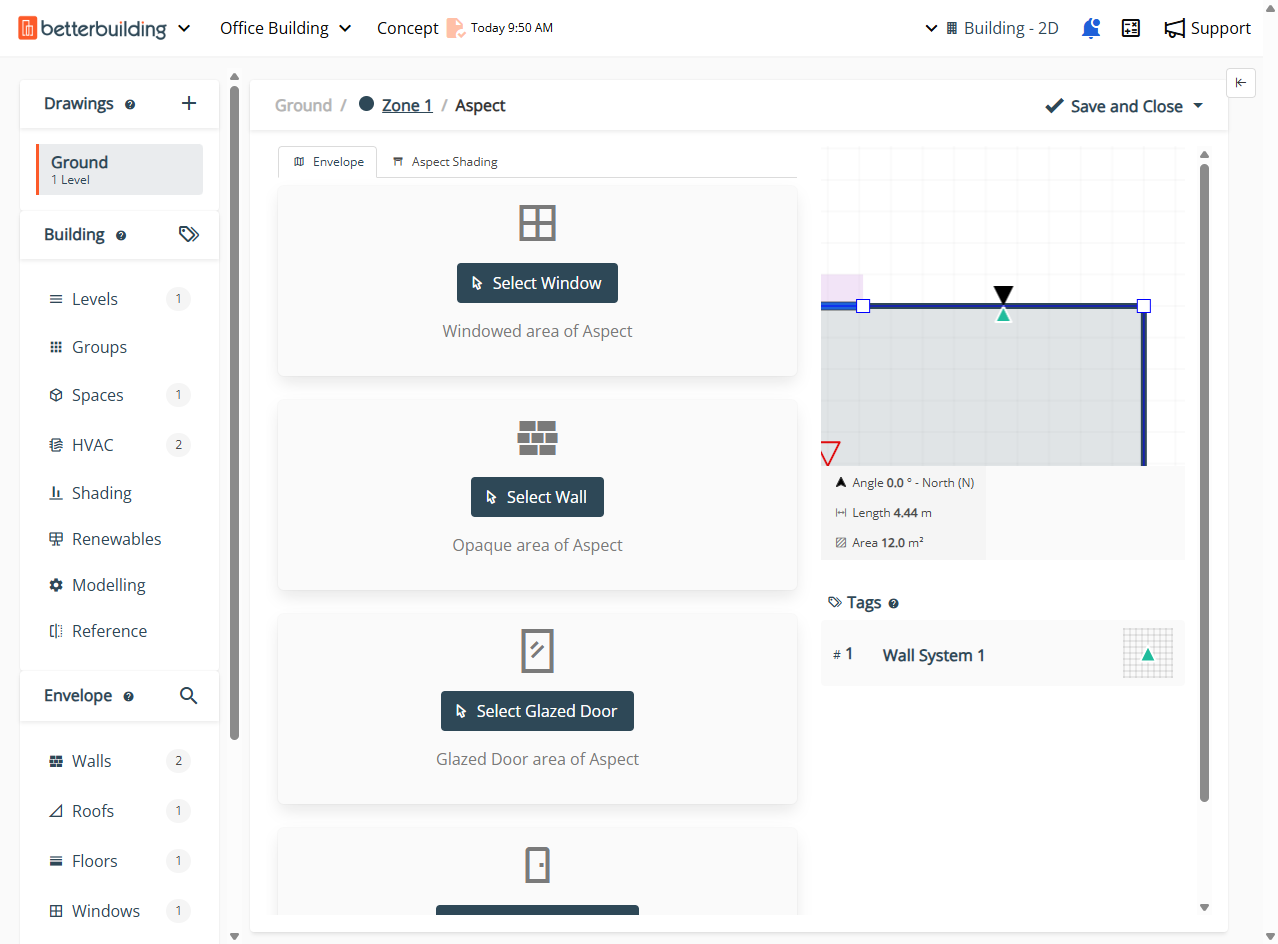

To adjust wall envelope settings, left-click directly on the wall in question. This will bring up the envelope settings for windows, walls, glazed doors and opaque doors.
Update Roof and Floor Envelope Settings

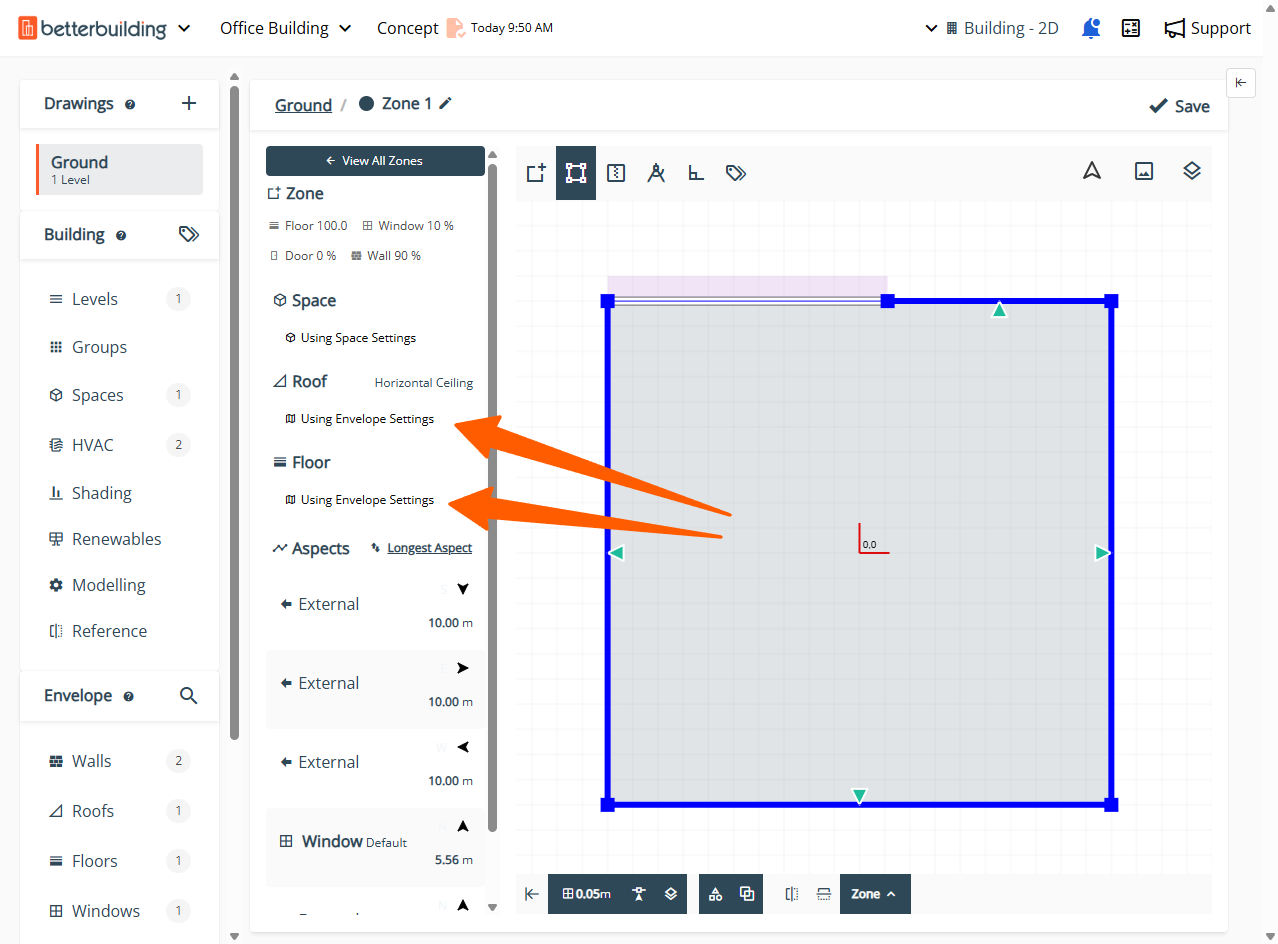

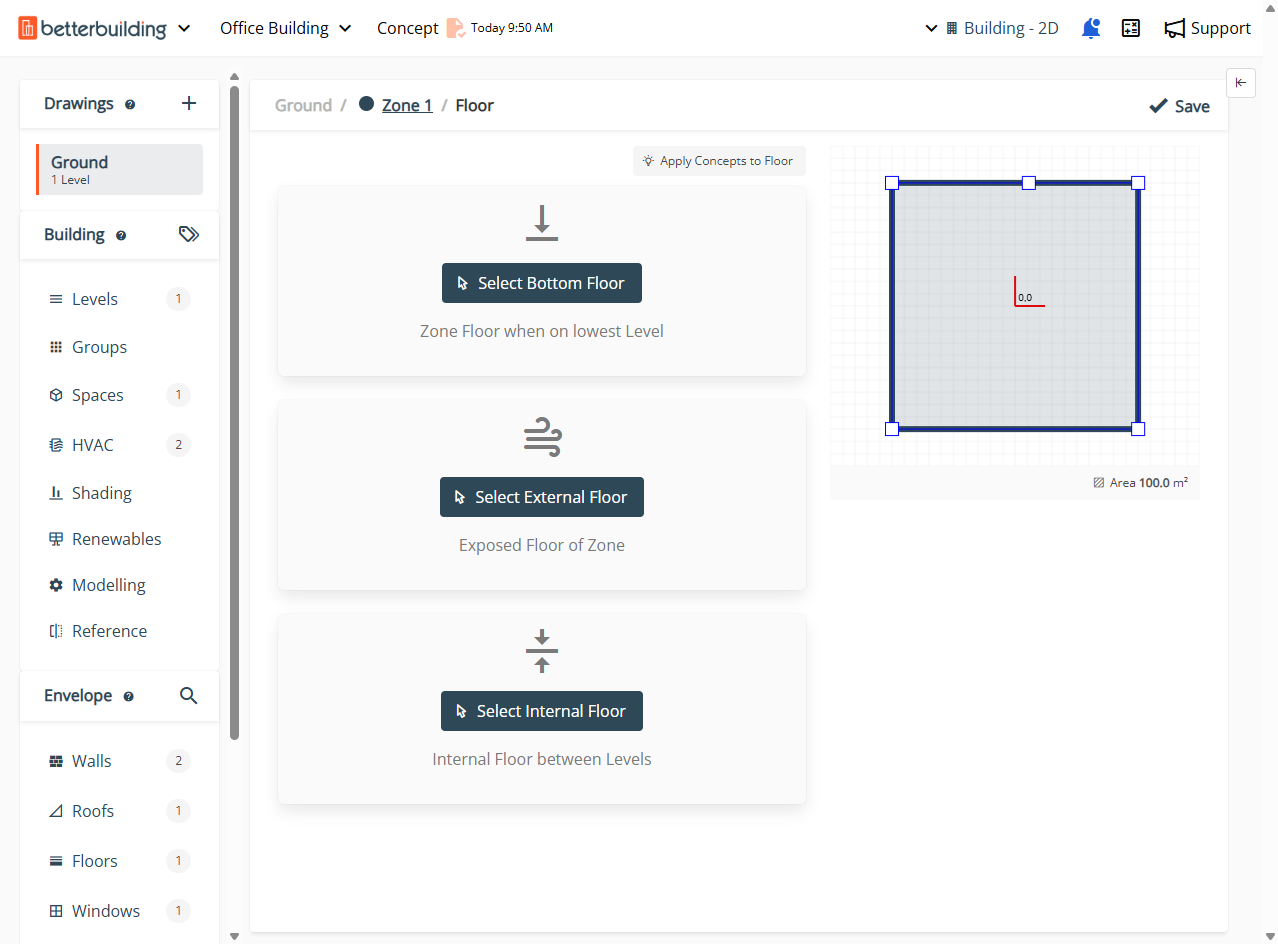

To update roof or floor envelope settings, click on 'Using Envelope Settings' in the left panel and navigate to the relevant tab – either 'Roof' or 'Floor'. In this example, we’ll use 'Floor'. Then select the Floor settings required.
