Locate Coordinates

Locate Coordinates helps you quickly identify positions in your model, which is especially useful when troubleshooting or reviewing geometry.

Locate Coordinates

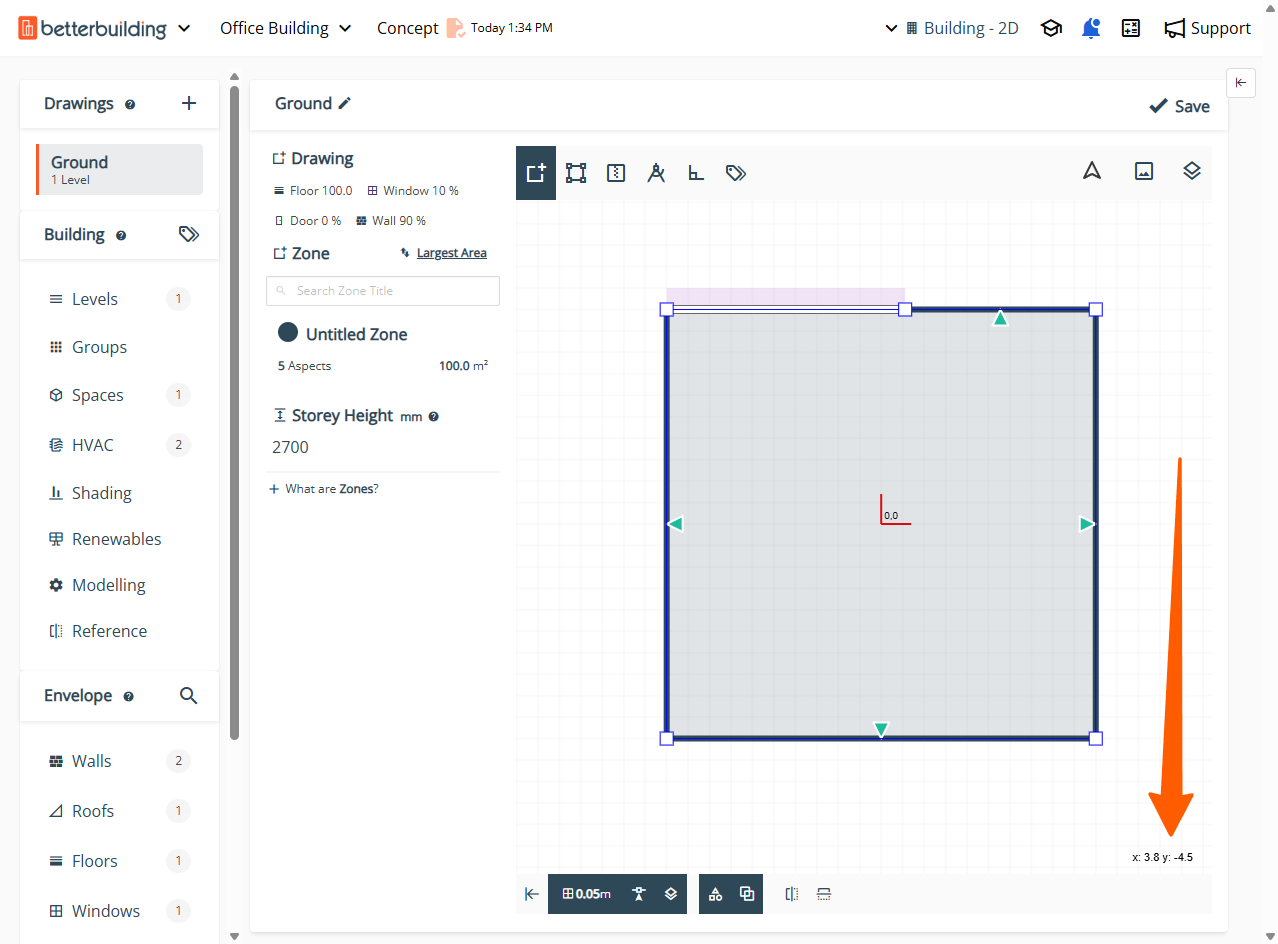

Click on any aspect in the drawing space, then check the bottom right corner of the screen. The X and Y coordinates will appear, showing the exact position of the selected element.
