Edit Grid Settings

Grid setting controls the resolution of the simulation grid in your model. It defines how detailed the grid is, affecting both accuracy and performance.

Set Grid Size

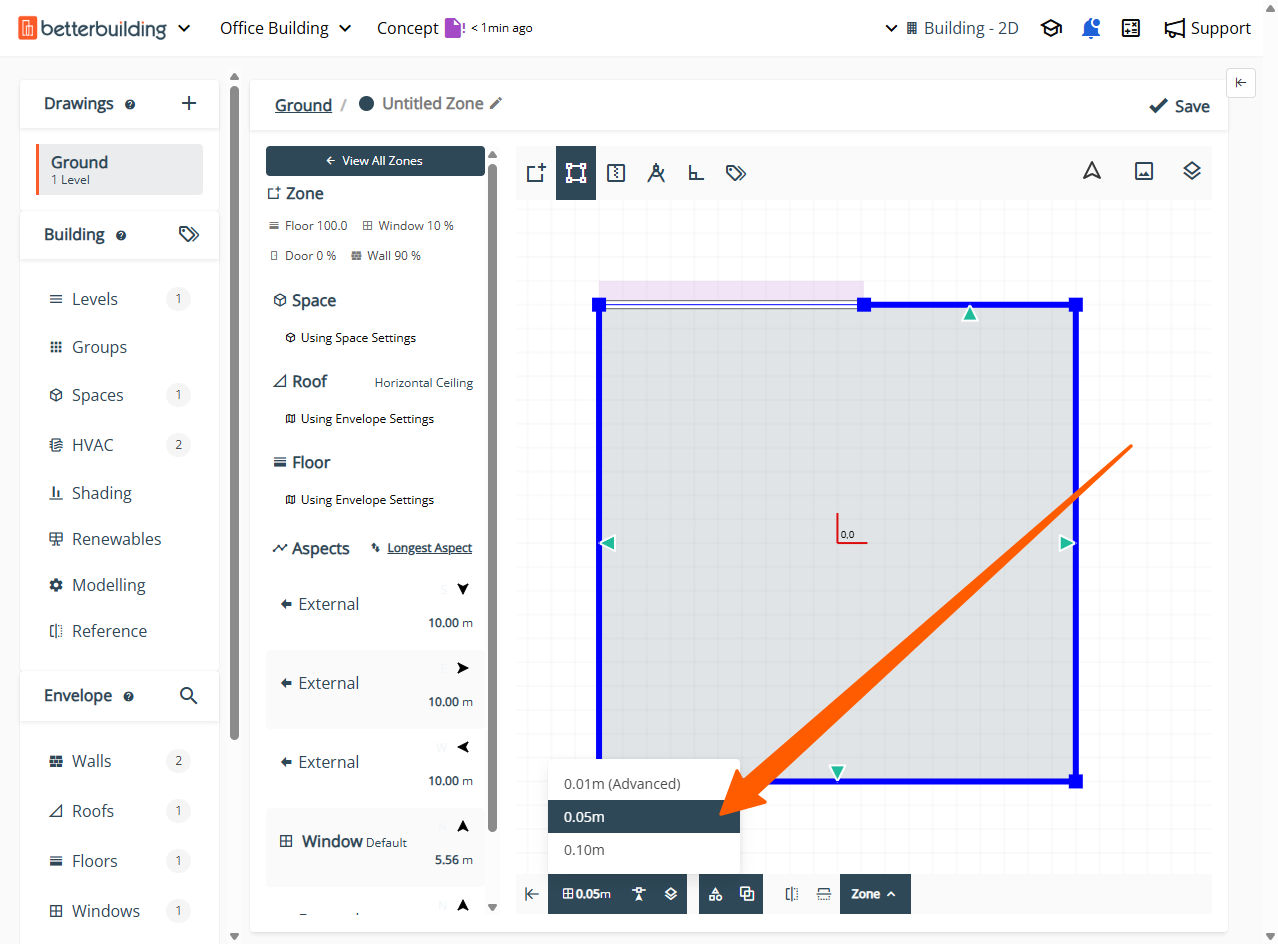

You can set the grid size in the lower ribbon of the drawing space. Use the dropdown to choose your preferred size, by default, it's set to 0.10 m, but you can adjust it to 0.50 m for quicker modelling or 0.01 m (advanced) for high-detail work.

We recommend keeping snapping turned on for both Zones and Layers to help align geometry accurately. You can toggle these off if needed. Just note, using the 0.01 m grid will slow down modelling significantly and should only be used when that level of precision is essential.
