Plant HVAC
Plant HVAC is a centralised system that generates heating, cooling, or both distributed throughout a building to meet its thermal requirements. A typical HVAC plant could include components such as boilers, chillers, towers, heat exchangers, pumps, and other equipment that produce exchange or move thermal energy. It is connected to the rest of the building through a network of pipes (for hydronic systems) or ducts (for air systems).
Plant HVAC Options
Air Handling Unit
The Air Handling Unit (AHU) includes optional equipment: 1) Return Air Fan 2) Outside Air System 3) Cooling Coil 4) Heating Coil 5) Supply Air ... More
Auxiliary Condenser Water Loop
The Auxiliary Condenser Water Loop facilitates heat transfer for water-to-air heat pumps. It comprises a supply side with heat exchangers and pumps.
Chilled Water Loop
The Chilled Water Loop incorporates chillers, pumps, pipes, control devices, and cooling coils. Chillers produce cool water, distributed by ... More
Condenser Water Loop
The Condenser Water Loop features a supply side with Cooling Towers, pumps, pipes, and control devices. The demand side may include chillers, ... More
Four Pipe Heat Pump
The Four Pipe Heat Pump is an air-source, reverse-cycle device that produces hot or chilled water. It centralises the configuration of heat pump-cooling and ... More
Hot Water Loop
The Hot Water Loop comprises supply-side equipment like (gas) boilers or heat pumps, pumps, pipes, and control devices. The demand ... More
VRF Condenser Unit
The VRF Condenser Unit, akin to a split-system AC outdoor unit, has a compressor, fan, and heat exchanger. Located outdoors, it ... More
Constant Air Volume (Air Cooled)
Constant Air Volume (Air Cooled) is a templated system providing a consistent air volume to conditioned spaces, regardless of ... More
Fan Coil Unit (FCU) System
The Fan Coil Unit (FCU) System is a templated design featuring a heating and/or cooling heat exchanger (referred to as a "coil") along with a ... More
Variable Air Volume (VAV) System (Air Cooled)
A templated system pre-configured for an HVAC system where the volume of air delivered to each zone varies based on that zone's heating or cooling ... More
Variable Refrigerant Flow (VRF) System
The Variable Refrigerant Flow (VRF) System is a templated design utilizing refrigerant as the cooling and heating medium. It adjusts refrigerant ... More
Add Plant HVAC

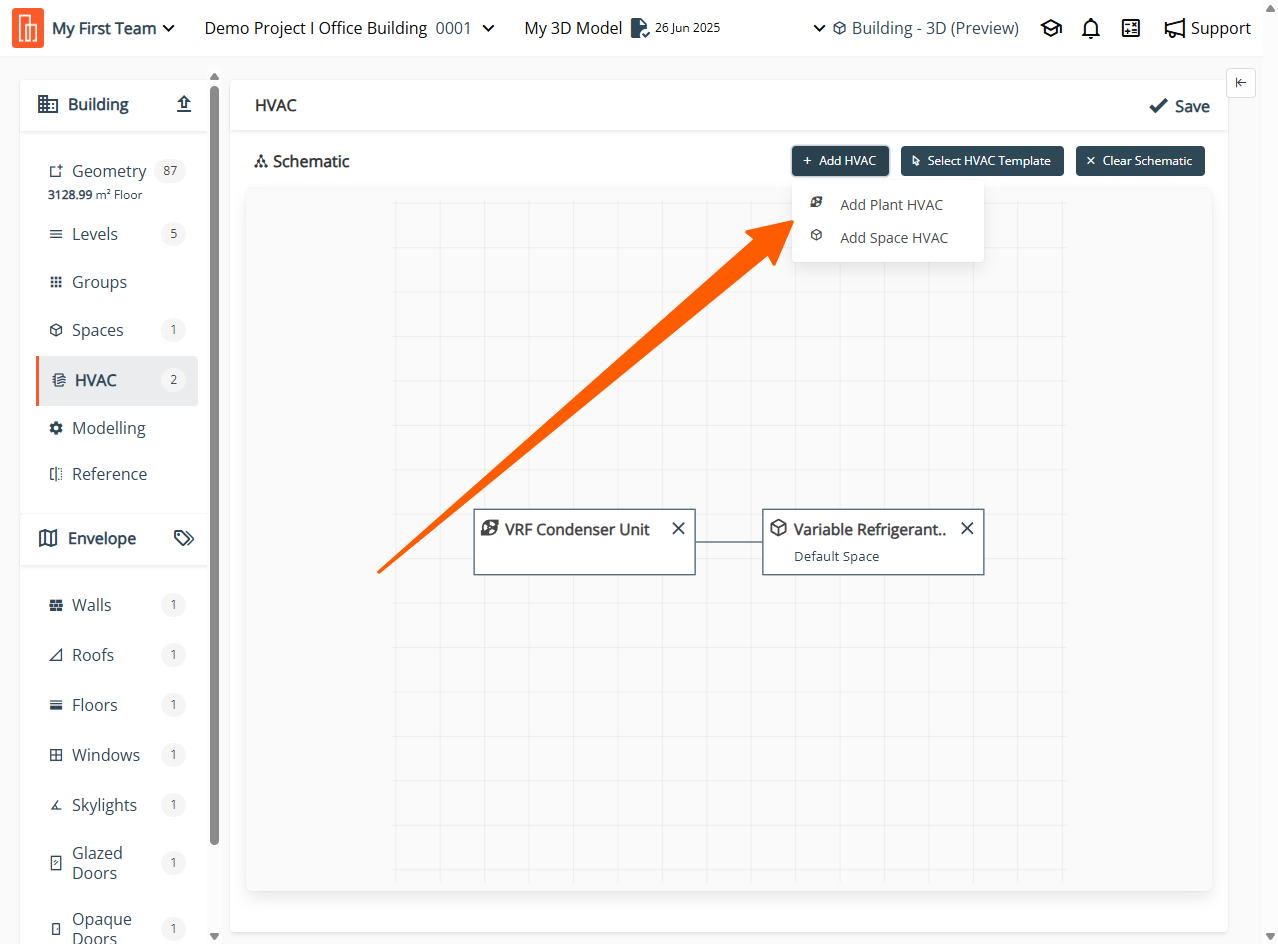

To Add Plant HVAC, navigate to 'HVAC' and select the 'Add Plant HVAC' in the Schematic ribbon. Then, navigate to 'Type' and search for the desired system. See below for more details.
